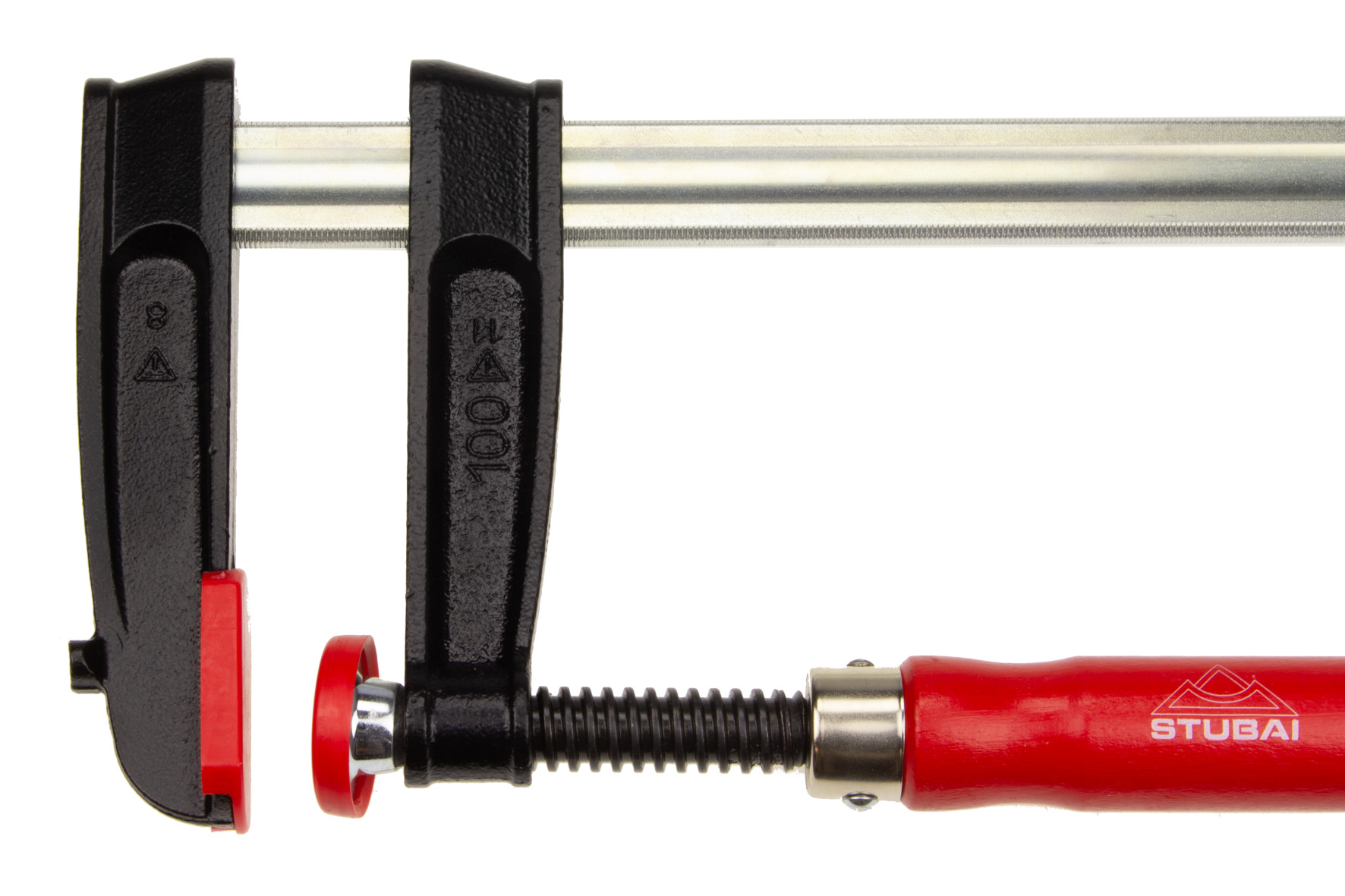

2871 Malleable iron screw clamp with wooden handle
Ergonomically shaped wooden handle, protective caps on the clamping surfaces, sturdy hollow profile rail with ribbing, anti-slip protection.
| Item No | Designation | Weight | Slider size | Clamping depth | Span |
|---|---|---|---|---|---|
| 287102 | Malleable iron screw clamp with wooden handle 160x80 mm | 720 g | 25x6 mm | 80 mm | 160 mm |
| 287103 | Malleable iron screw clamp with wooden handle 200x80 mm | 750 g | 25x6 mm | 80 mm | 200 mm |
| 287104 | Malleable iron screw clamp with wooden handle 250x80 mm | 800 g | 27x7 mm | 100 mm | 250 mm |
| 287107 | Malleable iron screw clamp with wooden handle 200x100 mm | 1360 g | 27x7 mm | 100 mm | 200 mm |
| 287108 | Malleable iron screw clamp with wooden handle 250x120 mm | 1630 g | 29x9 mm | 120 mm | 250 mm |
| 287109 | Malleable iron screw clamp with wooden handle 300x120 mm | 1715 g | 29x9 mm | 120 mm | 300 mm |
| 287110 | Malleable iron screw clamp with wooden handle 400x120 mm | 1875 g | 29x9 mm | 120 mm | 400 mm |
| 287111 | Malleable iron screw clamp with wooden handle 500x120 mm | 2045 g | 29x9 mm | 120 mm | 500 mm |
| 287112 | Malleable iron screw clamp with wooden handle 600x120 mm | 2190 g | 29x9 mm | 120 mm | 600 mm |
| 287113 | Malleable iron screw clamp with wooden handle 800x120 mm | 2530 g | 29x9 mm | 120 mm | 800 mm |
| 287114 | Malleable iron screw clamp with wooden handle 1000x120 mm | 3000 g | 29x9 mm | 120 mm | 1000 mm |
